THE OPTIMAL UAS SOLUTION

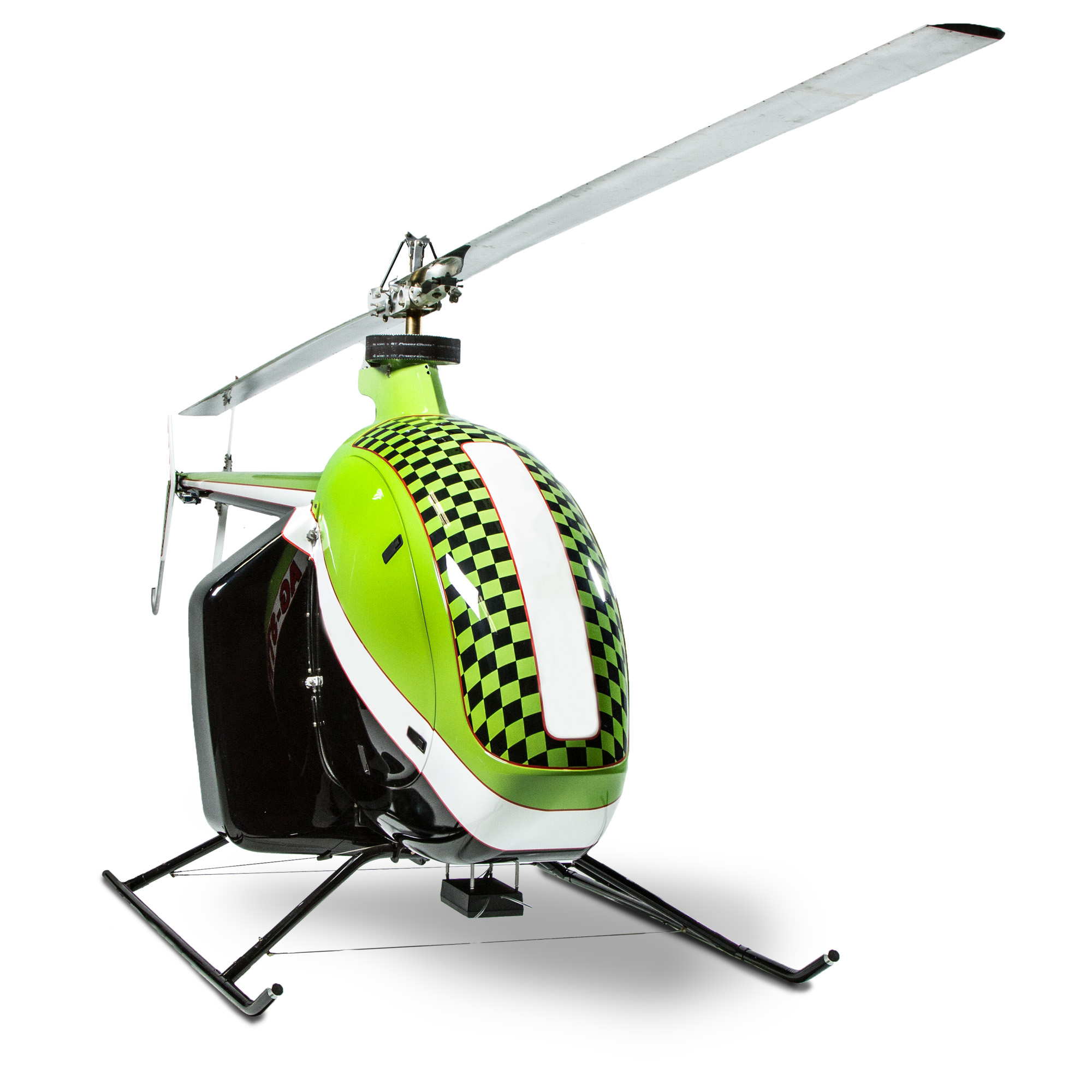

Snaproll has a proven record in the UAS industry through 10 years of piloting for industry leaders. The SRA850 combines a proven airframe with expert avionics to deliver a versatile system, for Agriculture, Oil & Gas, Emergency response and Entertainment industry use.

Specifications

  • 402 pounds (182 kg) empty weight
  • 12 US Gallon fuel tank (standard)
    • Up to 52 US Gallons (extended endurance)
  • 2-Cylinder, liquid cooled 85 HP engine
  • Max gross: 850 lb
  • Airframe: 16 feet (4.8 m)
  • Overall length: 21 ft, 7 inch (6.1 m)
  • Height: 82 inches (2.08 m)
  • Width: 62 inches (1.57 m)
  • Rotor Diameter 19.5 feet (5.95 m)
  • Tail Rotor Diameter 40 inches (1m)
  • Max airspeed: 100 mph* (112 kph)
  • Cruise speed: 65 mph (104 kph)
  • Climb rate: 900 fpm (275 mpm)
  • Max Flight time: 7.8 hours* (endurance - no reserve)
  • Range: 508 miles (817km)(no reserve)

*Figures vary based on chosen configuration/build.

Capabilities

  • 7+ hour flight time (gas or heavy fuel)
  • Fully autonomous flight
  • Up to 410lb. useful load
  • Platform in service over 20 years
  • World class flight controller system and avionics
  • Various remote attachment configurations available
