Gear


DRONE TECHNOLOGY

Cameras We fly

Our UAVs are custom configured to carry the best imaging technology




Stabilization






We are very proud to have a working relationship with one of the top innovators in the industry for our camera stabilization needs both in the air and on the ground. Freefly Systems has established themselves as the leading force behind brushless gimbal systems as well as their very own aerial platforms. We're proud to represent a hard working and pioneering brand.






Given the name "The Heavylifter" by our team, the Mōvi Pro is the hard working stabilization platform used to carry the cinema cameras of today's largest productions. Flying the Arri Alexa Mini or a RED Weapon setup with full F.I.Z. control is what this configuration spends the majority of its time doing. Freefly's latest round of improvements and refinements to the older M15 bring us to the Mōvi Pro with a stronger pan motor, integrated wiring and much more. We can trust we'll be providing a top notch experience when this gimbal is on your project.



Movi M5



The lightweight and versatile Mōvi M5 is the gimbal fitting the bill for most of our small to medium sized camera requirements. This gimbal typically will fly with a Canon DSLR or Panasonic GH4 style camera body and lens combination while hoisted into the air by an 8-blade bird.






The MōVI Controller This is a professional grade remote system that allows the operator full control over Pan, Tilt, and Roll. Compatible with the MōVI M5, M10, and M15, this controller provides telemetry from the MōVI and allows the user to access MōVI configuration menus to enable on the fly adjustment of key MōVI parameters.

The MōVI Controller
This
is a professional grade remote system that allows the operator full control over Pan, Tilt, and Roll. Compatible with the MōVI M5, M10, and M15, this controller provides telemetry from the MōVI and allows the user to access MōVI configuration menus to enable on the fly adjustment of key MōVI parameters.





Power

We power many of our camera systems and more with the Blueshape® batteries. They offer longer operational times to most every system we power and offer higher charge cycle counts than other competitors. BLUESHAPE makes a wide range of batteries designed for the V-Lock mounting system, the most popular standard in the video industry. Employing the world’s best industrial quality Li-Ion cells, BLUESHAPE is proud to provide an array of products with the highest energy density available on the market today and suitable for a wide range of video production equipment, from light use to high demand cameras.


Heavy Lift UAS

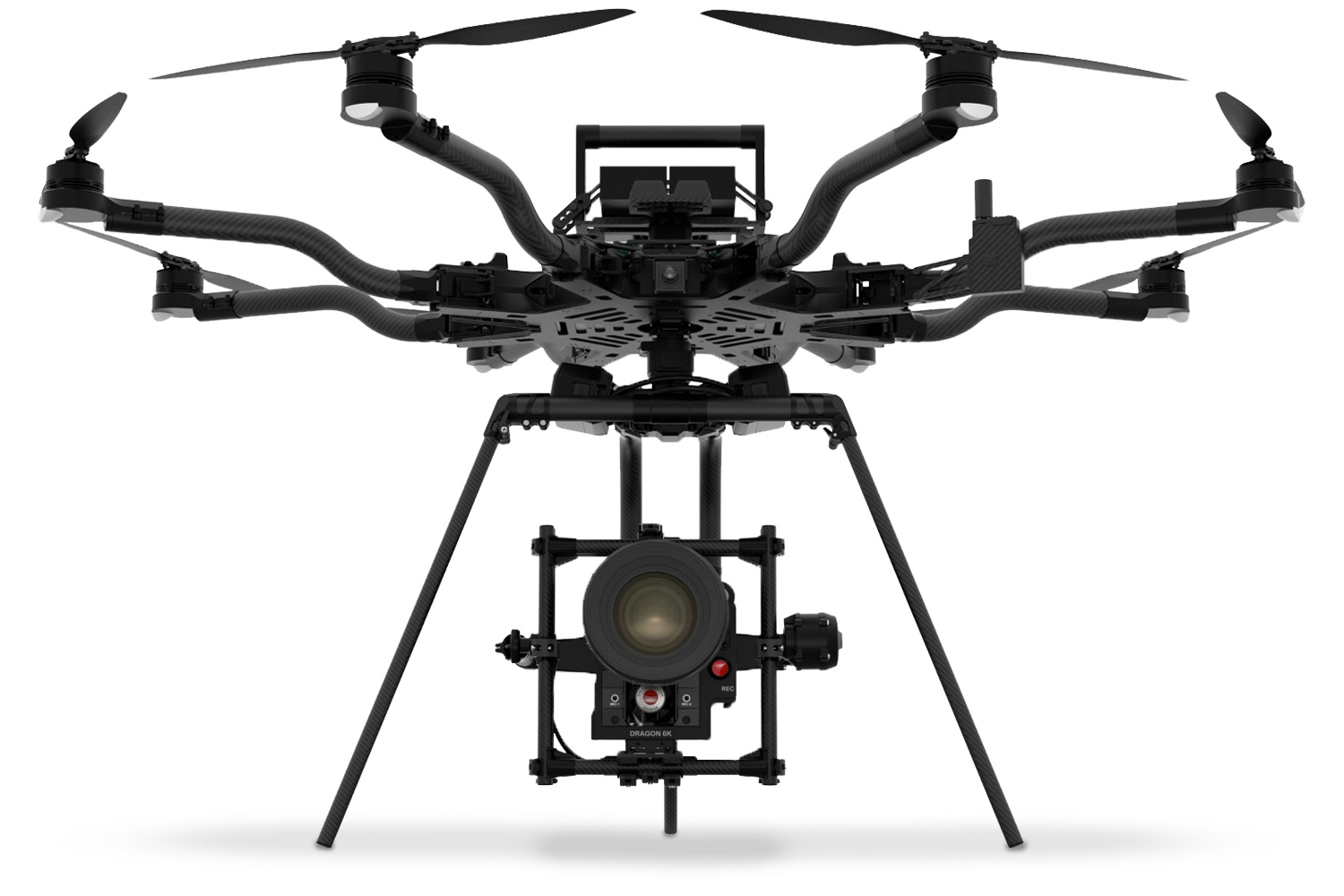

Freefly® ALTA

The Freefly ALTA multi-rotor unpacks, ready to shoot, in under five minutes. It is easy to fly, powerful, rigid, adaptable, reliable, and is a UAV optimized for up to 15-pound payloads. Confidently fly RED, ARRI and other professional cameras with our drone, guided by our state-of-the-art Synapse Flight Controller. Capture cinematic aerial shots like never before with the option to mount the MōVI on top.



Specifications

  • Flight time: 10min average
  • Lens supported: 3 pounds max
  • Cameras supported: Epic, Alexa Mini or similar
  • Top speed: 30mph
  • Blades: 6
  • Landing gear protection:
  • Cases: 4
  • Crew requirements: 3
  • FIZ (Focus, Zoom, Iris) Control: Dependent on camera+lens weight
  • Set up time: Initial setup - 45min, Normal setup - 8min

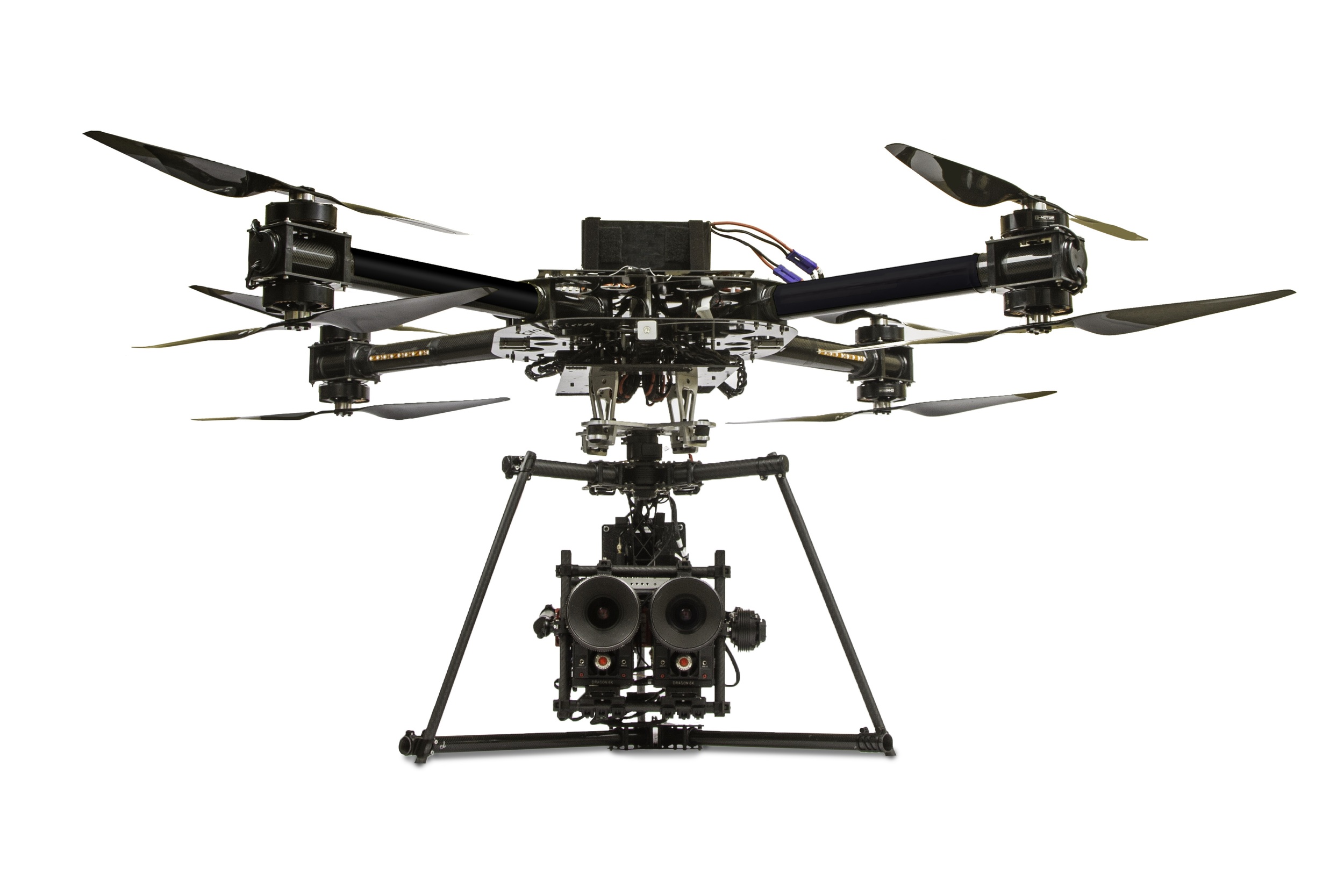

Matrix X8

Supports 3D and IMAX camera Solutions




The Matrix X8 is our largest multi-rotor aircraft capable of putting out 120lbs. of thrust thus enabling it to lift much heavier payloads. It thrives in harsh conditions or at altitude when smaller and more compact solutions simply can't perform.

SPECIFICATIONS

  • Flight time: 8 min
  • Cameras supported: Weapon, Epic, Dragon, Alexa Mini, 3D Weapons
  • Top speed: 30 mph
  • Blades: 8
  • Cases: 5
  • Crew requirements: 3
  • FIZ (Focus, Zoom, Iris) Control: Yes
  • Set up time: Initial setup - 45min, Normal setup - 8min

copterworks af25b

supports movi m15 and heavier cinema camera packages

SPECIFICATIONS

  • Flight time: 1 Hour
  • Lens supported: 3 pounds max
  • Cameras supported: Epic, Alexa Mini or similar
  • Top speed: 60mph
  • Blades: 1
  • Landing gear protection: Shock Absorbing
  • Cases: 4
  • Crew requirements: 3
  • FIZ (Focus, Zoom, Iris) Control: Dependent on camera+lens weight
  • Set up time: Initial setup - 45min, Normal setup - 8min



Medium Lift uas

DJI s1000 + MōVI M5

Supports mirrorless Sony A7Sii cameras, Canon EOS DSLR Series, Nikon DSLR Series and Blackmagic Cinema Cameras


DJI S1000


DJI S1000 + MōVI M5

The DJI S1000 paired with a MōVI M5 is one of Snaproll Media's busiest UAS builds. The relatively compact and reliable package has allowed us to operate in remote locations flying cameras that pair with the best in the business. Often used for TV, Web and smaller budget movies, the S1000 setup spends a fair amount of time on the road and on the go.



Specifications

  • Flight time: 7min average
  • Lens supported: 1.5 pound max
  • Cameras supported: 3 pound max
  • Top speed: 30mph
  • Blades: 8
  • Landing gear protection:
  • Cases: 3
  • Crew requirements: 3
  • Ground control of camera/lens settings: depends on camera weight
  • Set up time: Initial Setup 15min, Normal setup 3min

light lift uaS

Inspire 1 PRO
Inspire 1 PRO
Inspire 1 PRO

DJI Inspire 1 Pro - X5R

The DJI Inspire 1 offers a reliable dual-operator package in a small and effective package. Using the DJI Zenmuse gimbal technology matched with the X5R camera capable of up to 12.8 stops of latitude at 4K makes this package hard to beat in smaller places or even indoors.

Specifications

UAV

  • Flight time: 15min
  • Cameras supported: DJI X5R
  • Top speed: 40mph
  • Blades: 4
  • Landing gear protection:
  • Cases: 1
  • Crew requirements: 3
  • Ground control of camera/lens settings: yes
  • Set up time: Initial setup - 5min, Normal setup - 30sec

Camera

  • Lossless cinema 4K RAW video
  • Record at 4096x2160 (24/30fps) or 1920x1080 (24/30/60fps)
  • Average 1.7 Gbps bitrate (2.4Gbps maximum)
  • Removable 512GB SSD
  • 16MP photographs
  • 12.8 stops of dynamic range
  • Len(s) supported: DJI MFT 15mm f/1.7 ASPH, Lumix 15mm f/1.7, Olympus M. ED 12mm f/2.0, Olympus M.Zuiko 17mm f/1.8

Ground Level Services



Freefly TERO

The Freefly TERO is a completely new way to move the camera. The system allows for an extremely dynamic low camera angle coupled with full 3-axis control of the MōVI stabilizer to create never-before-seen shots. With our custom Vibration Isolation System on a car as smooth and agile as this, you’ll rethink what is possible from a chase car.




CUSTOM solutions

Being able to operate "off-the-shelf" (OTS) equipment is one thing, but our background is in engineering and building our own aerial platforms. Our in-house machining technology allows us to outfit current OTS solutions with custom hardware, higher-end components, improved avionics and more by creating parts from scratch. By using tools such as AutoCAD® and SOLIDWORKS® we can take a concept and bring it to life with completely custom UAS solutions.


UAV Comparison

* Payload capacity includes camera and lens weights combined.


Setup time
